| SX-1 - Positioning controller repair | Hardware |

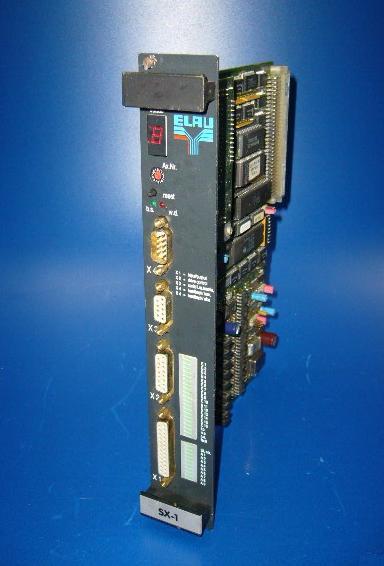

The SX-1 of ELAU is one of the earliest positioning controllers with an integrated PLC.
In conjunction with a speed controller precise movements of machine components are accomplished.
The SX-1 is expandable by plug-in hardware modules.

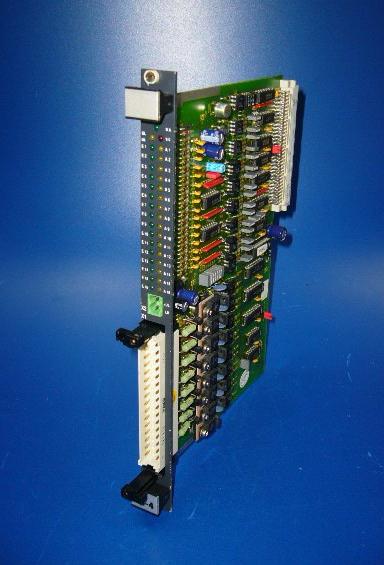

The digital input-/output interface EA-4 provides 16 inputs and 16 outputs.
The devices were designed during the 80th by ELAU in Marktheidenfeld.
The SX-1 is counted among the devices, which are discontinued.
Anyhow numerous devices are still operated nowadays in all kind of machines.
We are providing comprehensive technical support to users of SX-1s to fair prices:
• Inspection and repair.
• Short-term spare supply in the form of overhauled devices.
• Any second hand equipment delivered is rebuilt and tested.
In general a SX-1 works with an application related ECL programme and a parameter set which is adapted to the machine.
These data are essential for running the machine. In case of a total hardware failure the ECL programme and the machine parameters
get lost. This is why these data should be archived for a recovery.
Important hint:
We strongly recommend to backup Your ECL programme and machine data to put into archives for being well prepared
to the worst case.
Please visit our Technical support
for a qualified maintanance and reconditioning of your machine(s).
In the following table you will find the components and services currently available.
| Component / Service | Description | Item No. | Price € |
|---|---|---|---|
| Positioning controller | SX-1/22/1/0 (FB-1/2X) | 910500361 | on inquiry |
| Digital interface 16 x IN 16 x OUT | EA-4/20 | 910500362 | on inquiry |
| System manual German | DOKU SX-1 | 910500371 | on inquiry |
| Data backup | SAVE DATSX-1 | 910500315 | from 75,-- |
| Data recovery | REST DATSX-1 | 912500300 | from 75,-- |
The prices for saving and archiving your ECL data as well as the recovery of
the data sets depend on whether a SX-1 will be shipped to us or if we perform the
work on site at your plant.
The indicated prices are to be seen plus the valid V.A.T.
Inquiries concerning the delivery of the above mentioned components are to be addressed to
Robert Warnke
